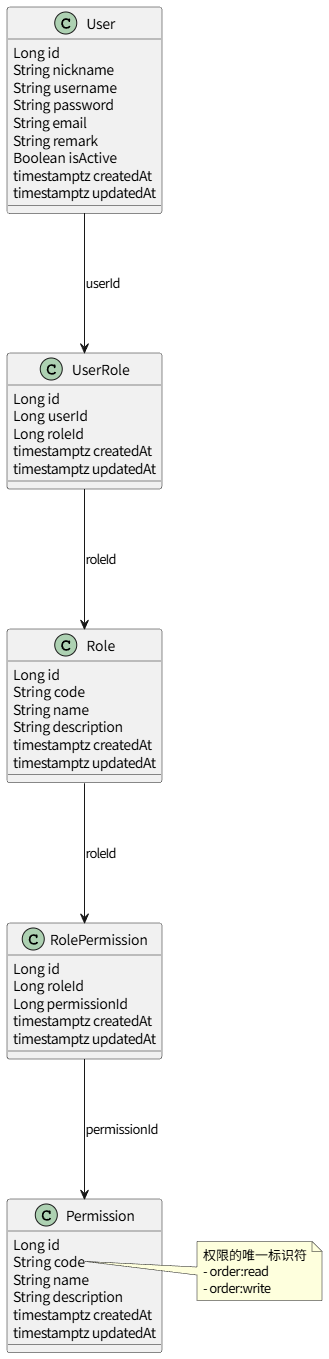

@startuml rbac
2

3
class User {
4
    Long id
5
    String nickname
6
    String username
7
    String password
8
    String email
9
    String remark
10
    Boolean isActive
11
    timestamptz createdAt
12
    timestamptz updatedAt
13
}
14

15
class Role {
16
    Long id
17
    String code
18
    String name
19
    String description
20
    timestamptz createdAt
21
    timestamptz updatedAt
22
}
23

24
class Permission {
25
    Long id
26
    String code
27
    String name
28
    String description
29
    timestamptz createdAt
30
    timestamptz updatedAt
31
}
32

33
note right of Permission::"String code"
34
    权限的唯一标识符
35
    - order:read
36
    - order:write
37
end note
38

39
class UserRole {
40
    Long id
41
    Long userId
42
    Long roleId
43
    timestamptz createdAt
44
    timestamptz updatedAt
45
}
46

47
class RolePermission {
48
    Long id
49
    Long roleId
50
    Long permissionId
51
    timestamptz createdAt
52
    timestamptz updatedAt
53
}
54

55
User ---> UserRole : "userId"
56
UserRole ---> Role : "roleId"
57
Role ---> RolePermission : "roleId"
58
RolePermission ---> Permission : "permissionId"
59
@enduml
